CDD-562AL/564A/L Multi-Channel Demodulator Revision 0
Installation and Startup MN-CDD562AL564AL
2–3

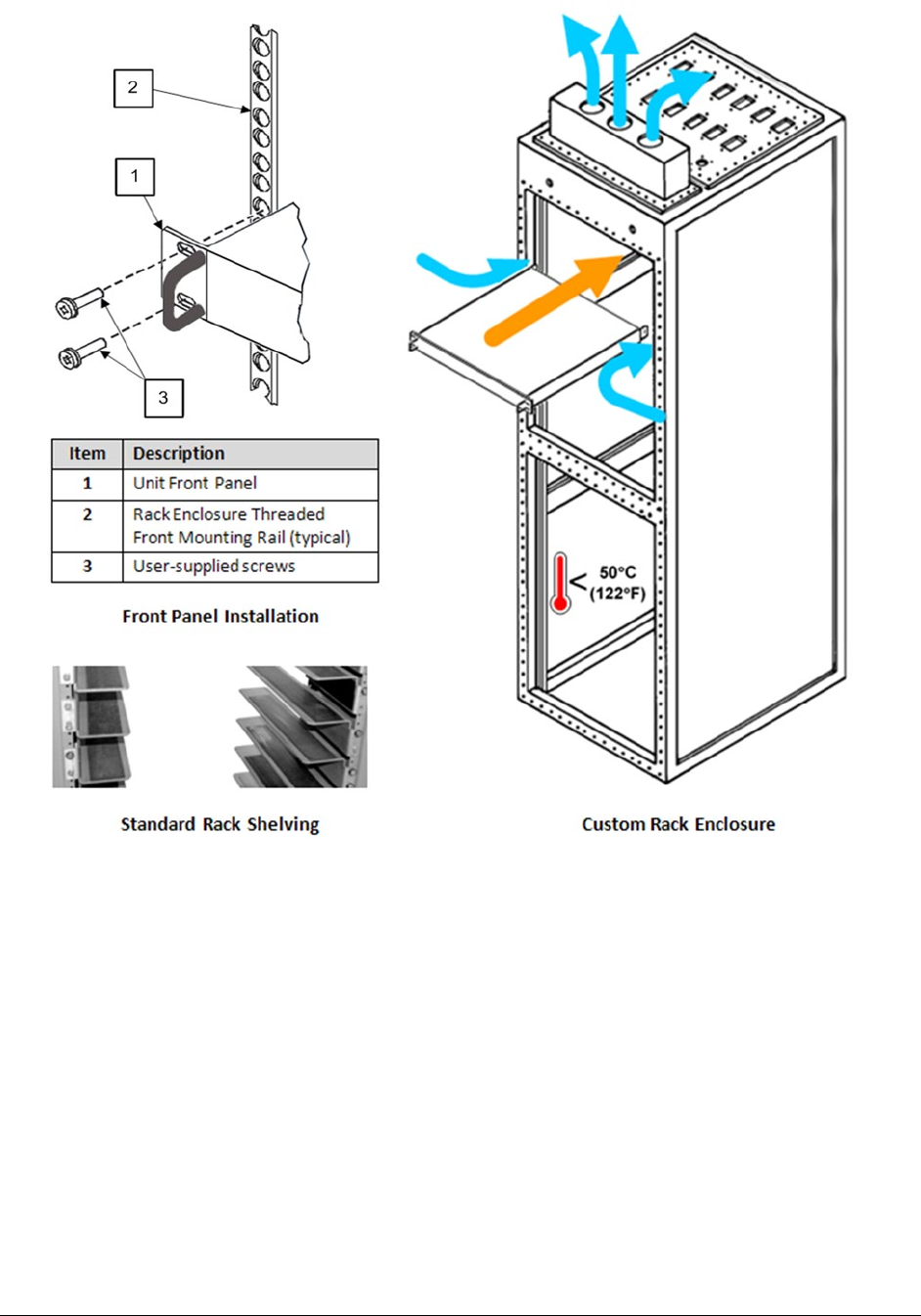

Figure 2-2. Installation into a Rack Enclosure
Install the CDD-56xA/L in its assigned position in the rack enclosure. Use, as required:
• A standard rack installation shelf;
• User-supplied screws to secure the front panel to the rack enclosure threaded front installation
rails;
• Comtech EF Data’s optional KT/6228-2 (4”) or KT/6228-3 (10”) Rear Support Brackets Kit.
