CDD-562AL/564A/L Multi-Channel Demodulator Revision 0
Telnet and CLI Operation MN-CDD562AL564AL
9–41

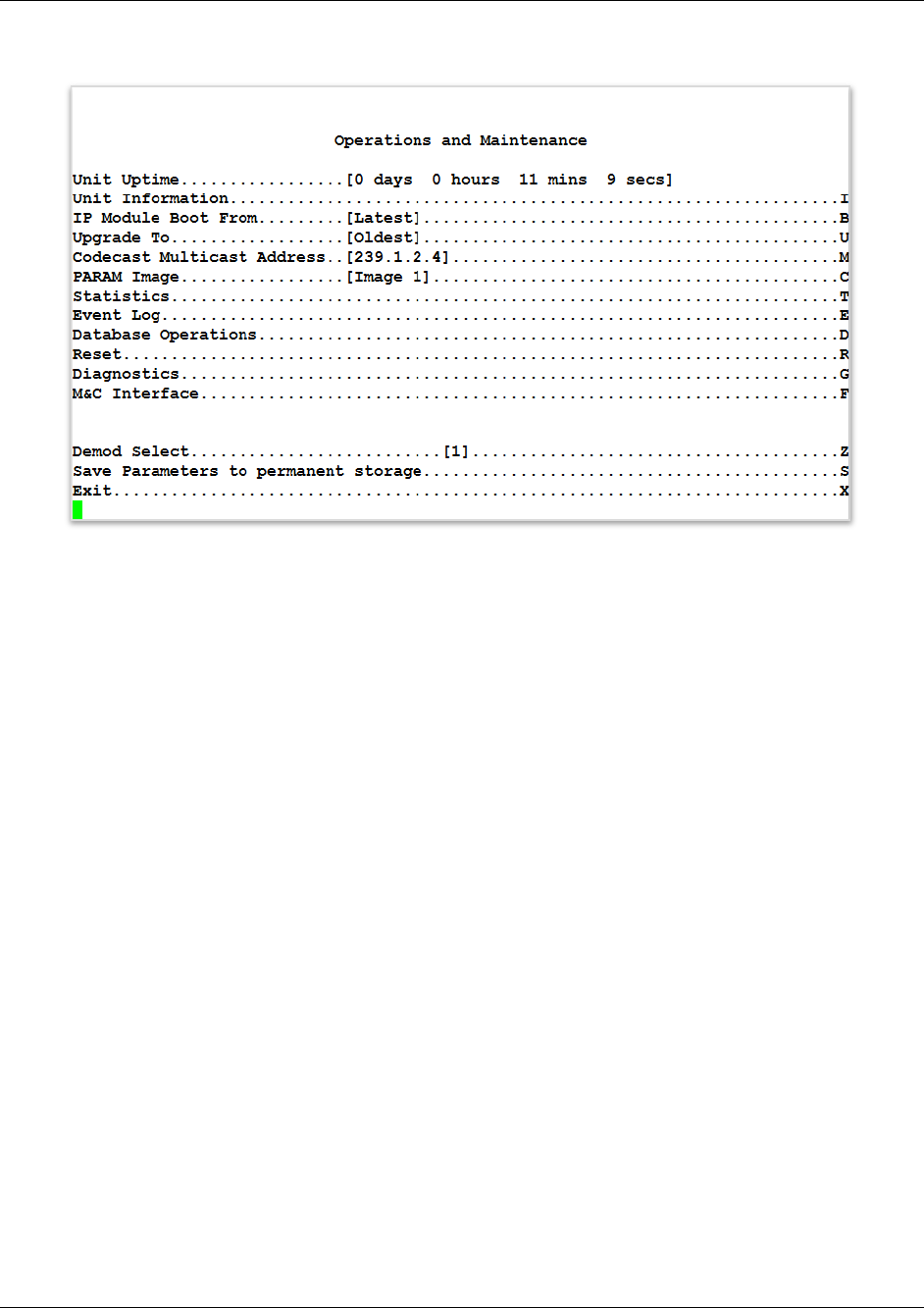

9.2.2.7 Operations and Maintenance screen
Go to the Operations and Maintenance screen from the Main Menu.
Unit Up Time, keystroke: none, read-only
• Shows the elapsed time the unit has been running continuously since its last reboot.
Unit Information, keystroke: I
• Opens the Unit Information screen, which shows details about the unit’s operational firmware.
• See Section 9.2.2.7.1.
IP Module Boot From, keystroke: B
• Sets which version of the IP Module firmware will be loaded upon boot-up. This includes
Application, FPGA and FFPGA.
o 0=Latest – Boots the newest firmware package based upon date.
o 1=Image1 – Boots the firmware package loaded into the first slot in permanent storage.
o 2=Image2 – Boots the firmware package loaded into the second slot in permanent
storage.
Upgrade To, keystroke: U
• Sets which installed firmware package that the IP Module overwrites when upgrading with a new
firmware package. This includes Application, FPGA and FFPGA.
o 0=Oldest – Overwrites the oldest firmware package based upon date.
o 1=Image1 – Overwrites the firmware package loaded into the first slot in permanent
storage.
o 2=Image2 – Overwrites the firmware package loaded into the second slot in permanent
storage.
