CDD-562AL/564A/L Multi-Channel Demodulator Revision 0
Telnet and CLI Operation MN-CDD562AL564AL
9–30

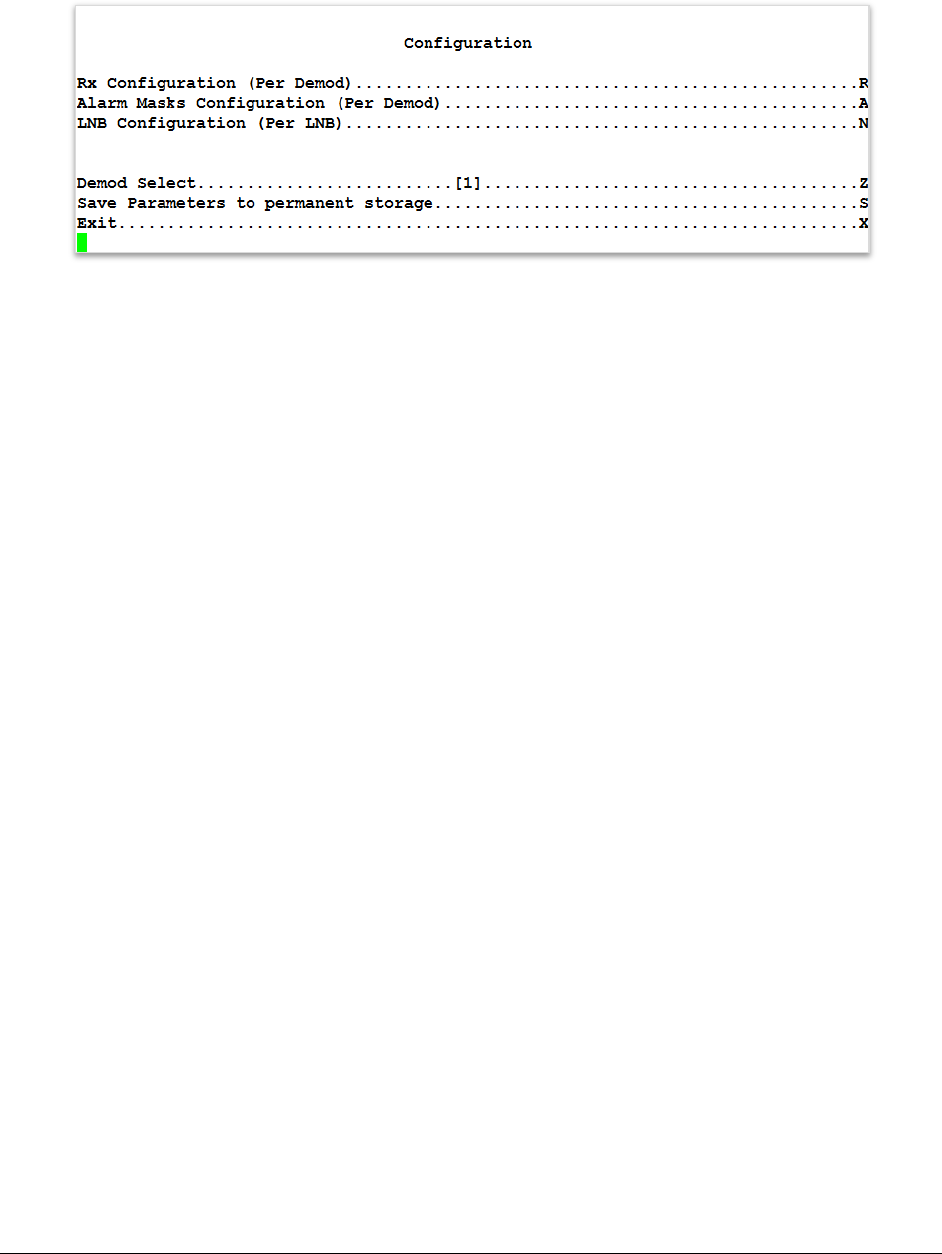

9.2.2.6.1 Configuration screen
Go to the Configuration screen from the Satellite Demodulator screen.
Rx Configuration (Per Demod), keystroke: R
• Opens the Rx Configuration (Per Demod) screen.
• See Section 9.2.2.6.1.1
Alarm Masks Configuration (Per Demod), keystroke: A
• Opens the Alarm Masks Configuration (Per Demod) screen.
• See Section 9.2.2.6.1.2
LNB Configuration (Per LNB), keystroke: N
• Opens the LNB Configuration (Per Demod) screen, if an LNB is detected.
• See Section 9.2.2.6.1.3
