CDD-562AL/564A/L Multi-Channel Demodulator Revision 0
Telnet and CLI Operation MN-CDD562AL564AL
9–60

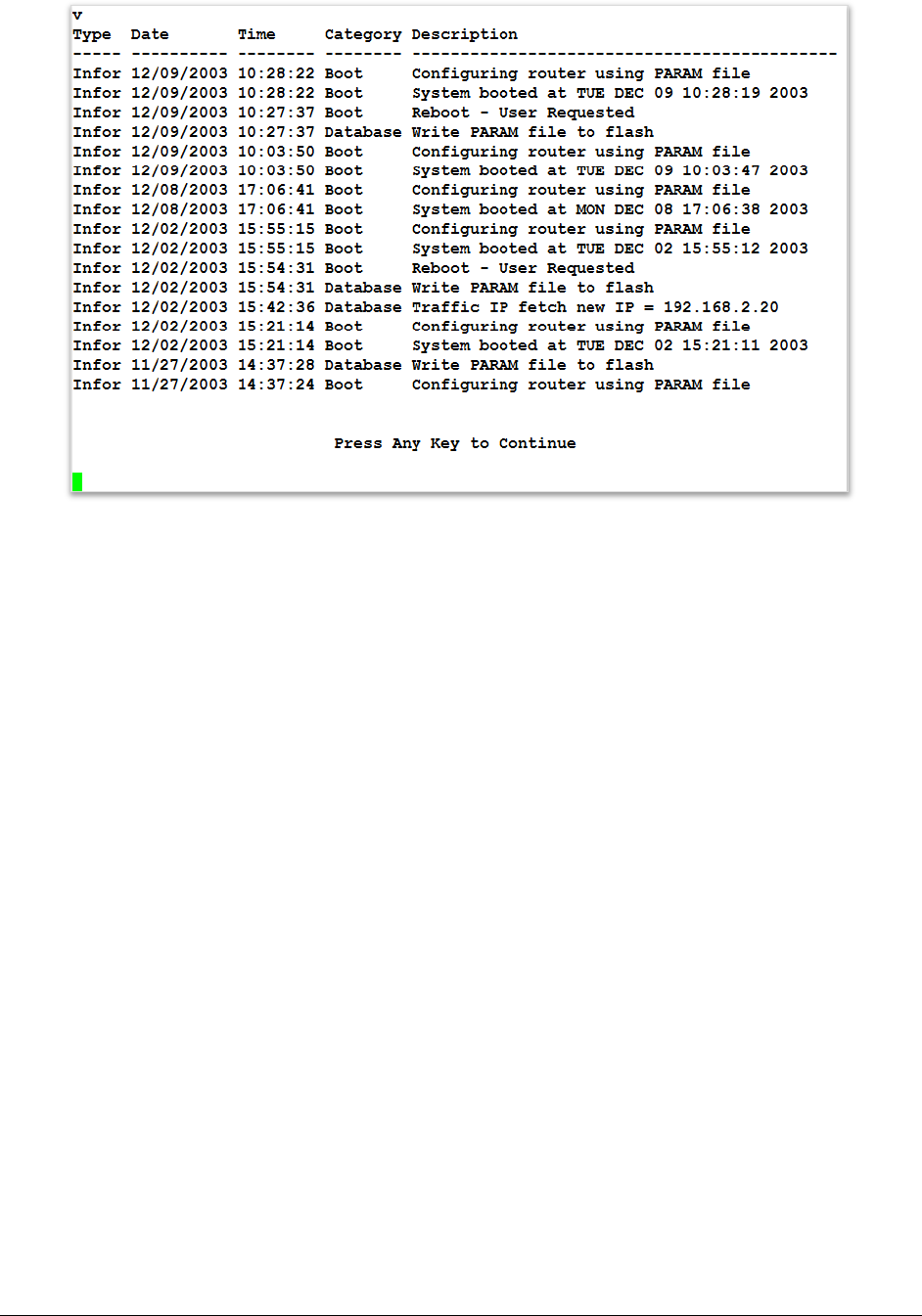

• All events show this data:
o Type – Error, Warning, or Information
o Date/Time – Note: During Bootup, multiple Boot Events will be created, but a Date/Time
will only be seen when the Bootup has completed.
o Category – Boot, Database, FTP logins, upgrade file transfers, Ethernet Link status
change.
o Description – Event details
Clear log, keystroke: C
• Type C to delete the contents of the log.
