CDD-562AL/564A/L Multi-Channel Demodulator Revision 0
Telnet and CLI Operation MN-CDD562AL564AL
9–48

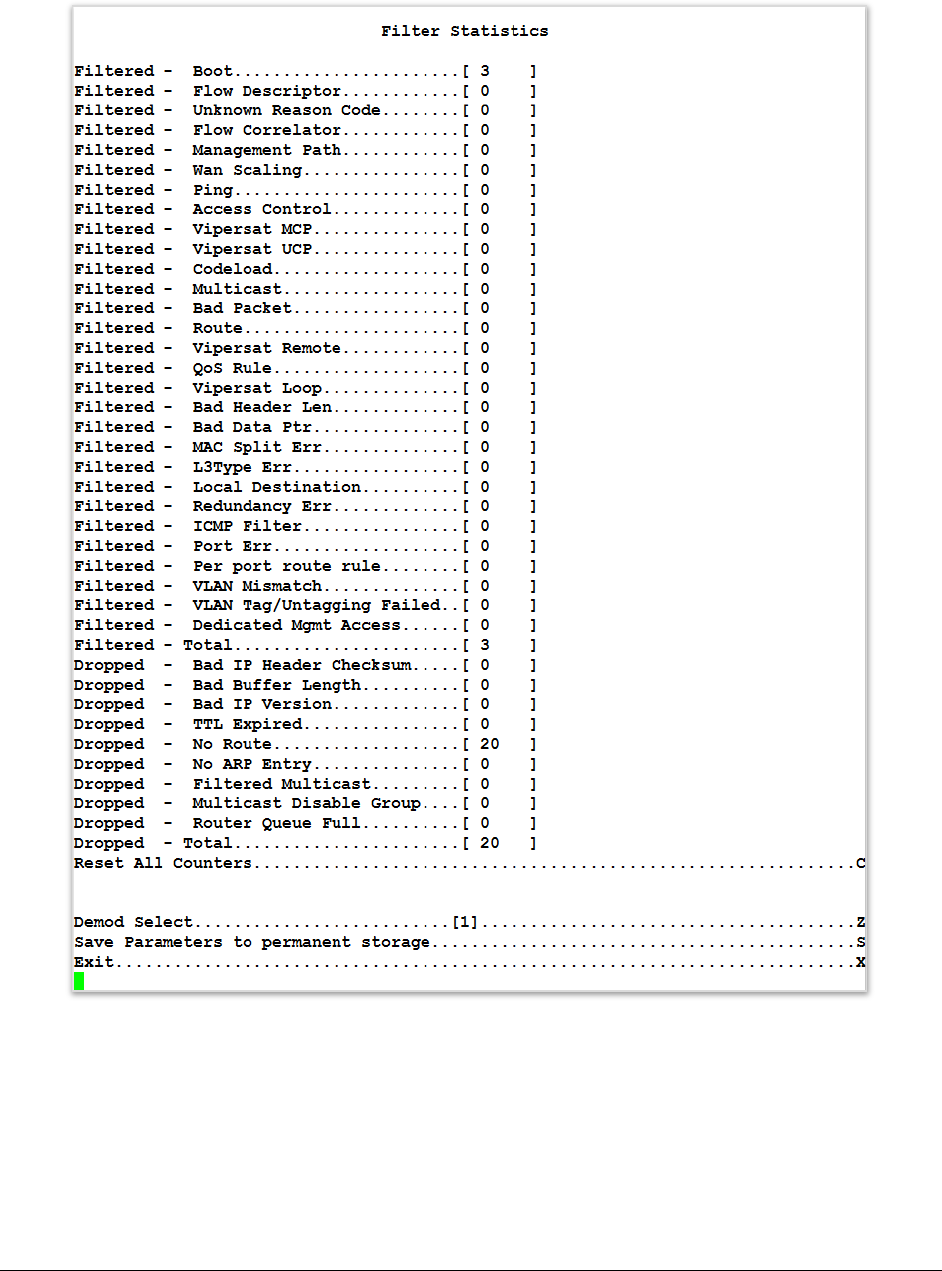

9.2.2.7.2.1.1 Filter/Drop Statistics screen
Go to the Filter/Drop Statistics screen from the Statistics Menu | IP Statistics screen.
This read-only screen shows the total number of packets filtered or dropped in the IP Module.
Filtered – Boot
• Packets are filtered while booting.
Filtered – Flow Descriptor
• Packets are filtered because of a Multicast packet classified as UNICAST packet.
