CDD-562AL/564A/L Multi-Channel Demodulator Revision 0
Telnet and CLI Operation MN-CDD562AL564AL
9–3
9.2 CLI Menu Screens
This section shows most CLI screens as they might appear using the PuTTY terminal emulator
application. The screens shown here are only examples. The appearance of your CLI interface will likely
vary from these examples, depending on your system configuration and the terminal emulator that you
use.

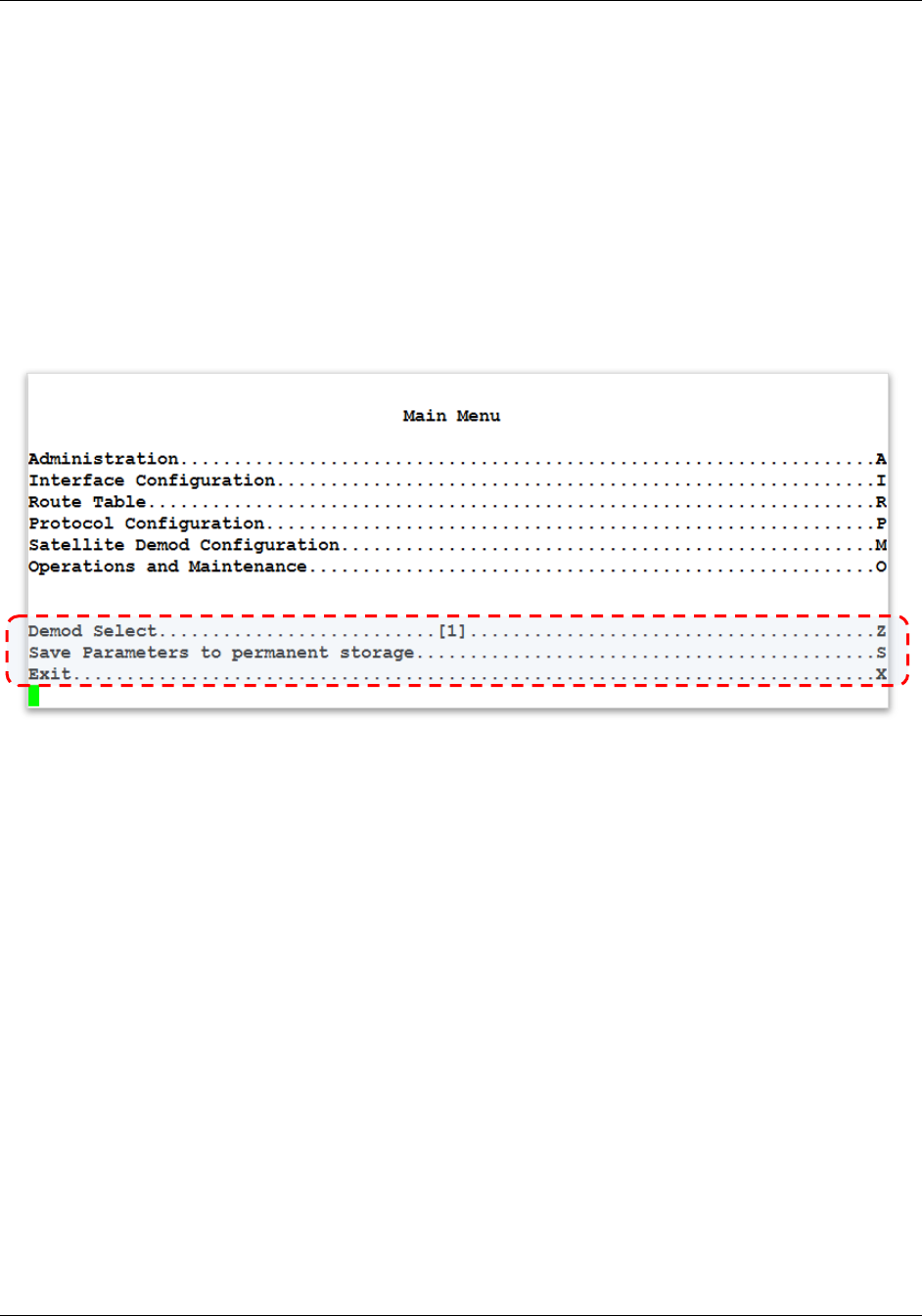

9.2.1 Common Interface Selections/field
These menu functions are common to all CLI screens:
• Demod Select…Z
• Save Parameters to permanent storage…S
• Exit…X
Demod Select, keystroke: Z
• Selects the active receive channel to apply the configuration:
• CDD-564A/L has 4 Rx Channels
• CDD-562AL has 2 Rx Channels.
Save Parameters to permanent storage, keystroke: S
• Allows user to permanently save the current configuration. This configuration is then stored to
flash memory and recalled for subsequent operational sessions.
Exit, keystroke: X
• Allows user to exit the current menu and return to its parent menu.
