CDD-562AL/564A/L Multi-Channel Demodulator Revision 0
Telnet and CLI Operation MN-CDD562AL564AL
9–43
o >0001/RFQ=1200.0000
• When finished, type X to exit the M&C Interface and go back to the Operations and Maintenance
screen.
• See also: Appendix D. CDM/CDD NMCS Remote Product Management Protocol
CAUTION
The M&C Interface is reserved for CEFD use only. It is not intended for customer use.

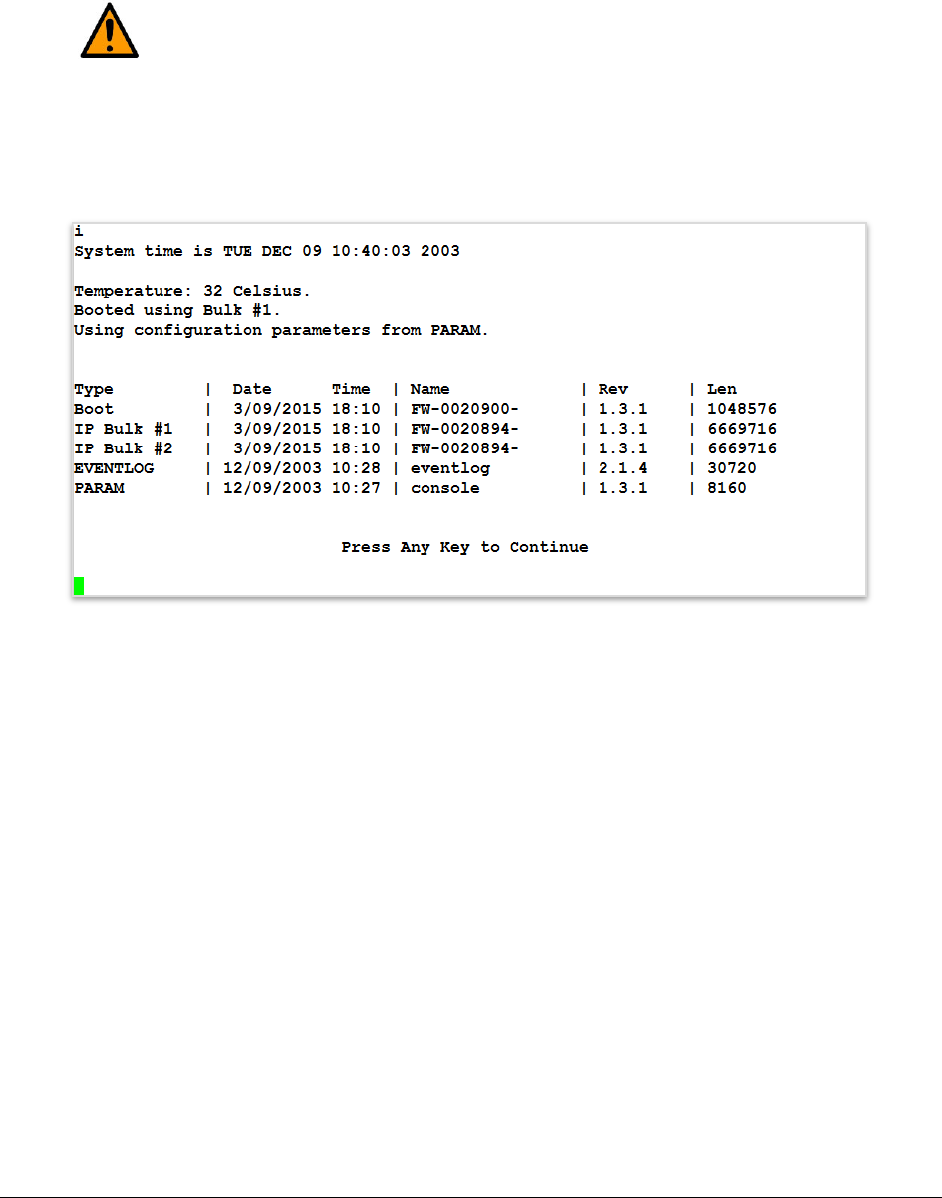

9.2.2.7.1 Unit Information screen
The Unit Information screen is available from the Operations and Maintenance screen.
The screen shows read-only information:
• System time is
o Shows the system time in “DAY MONTH DATE hh:mm:ss YEAR” format
• Temperature:
• Booted using Bulk #X
o Shows Image # from which the unit currently boots
o By default will be the Latest, unless “Boot From” is set to Image #1 or Image #2
• Using configuration parameters from PARAM
o Shows PARAM file from which the unit is configured
o By default, this file is the PARAM file from Flash memory, or Factory Default if no parameter
file is found in Flash memory.
o Type
Boot
IP Bulk #1
