CDD-562AL/564A/L Multi-Channel Demodulator Revision 0
Telnet and CLI Operation MN-CDD562AL564AL
9–29

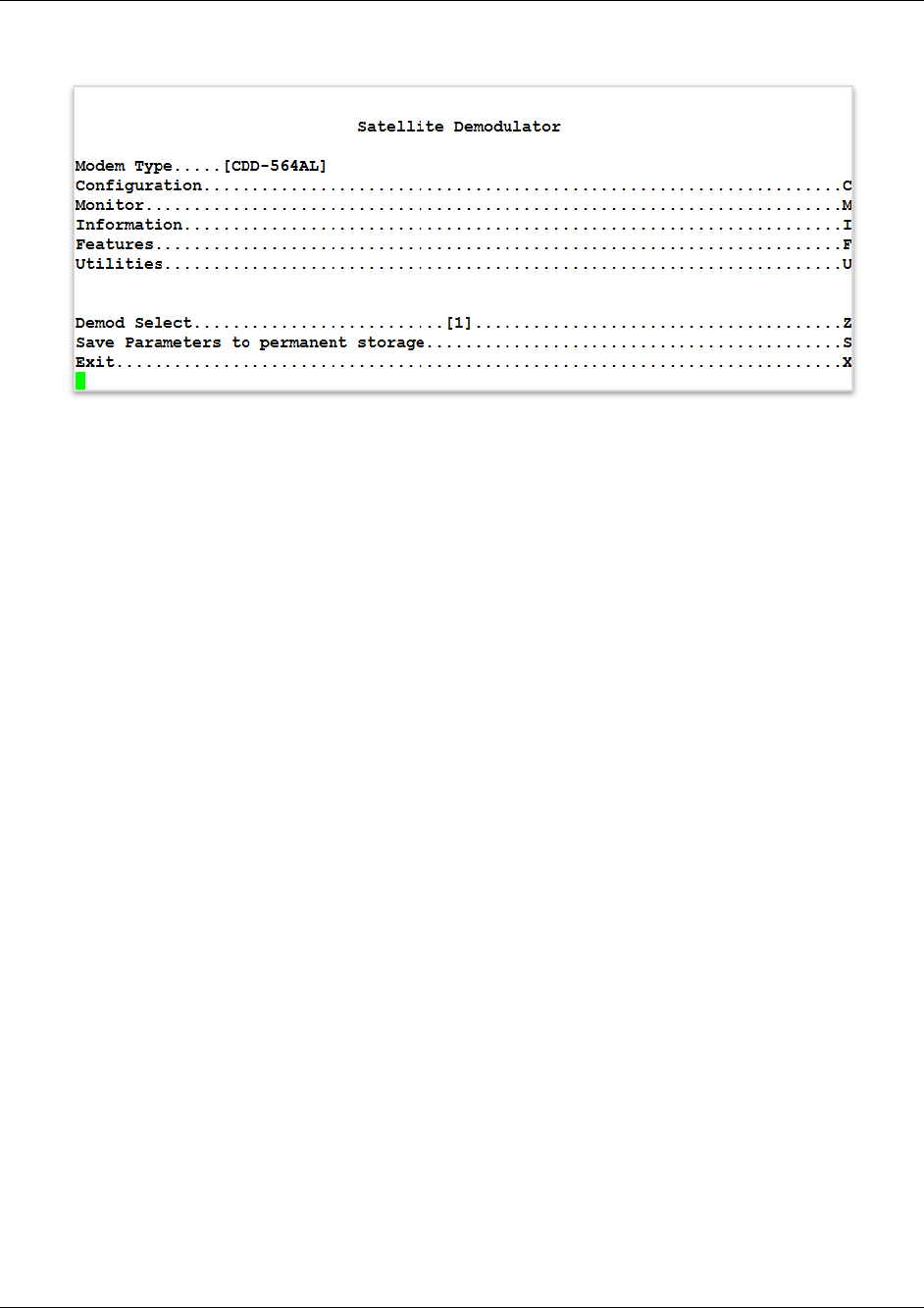

9.2.2.6 Satellite Demod Configuration screen
Go to the Satellite Demodulator screen from the Main Menu.
Modem Type, keystroke: none, read-only
• Shows the unit model
Configuration, keystroke: C
• Opens the Configuration screen.
• See Section 9.2.2.6.1.1
Monitor, keystroke: M
• Opens the Monitor screen.
• See Section 9.2.2.6.2
Information, keystroke: I
• Opens the Information screen.
• See Section 9.2.2.6.3
Features, keystroke: F
• Opens the Features screen.
• See Section 9.2.2.6.4
Utilities, keystroke: U
• Opens the Utilities screen.
• See Section 9.2.2.6.5
