CDD-562AL/564A/L Multi-Channel Demodulator Revision 0
Telnet and CLI Operation MN-CDD562AL564AL
9–9

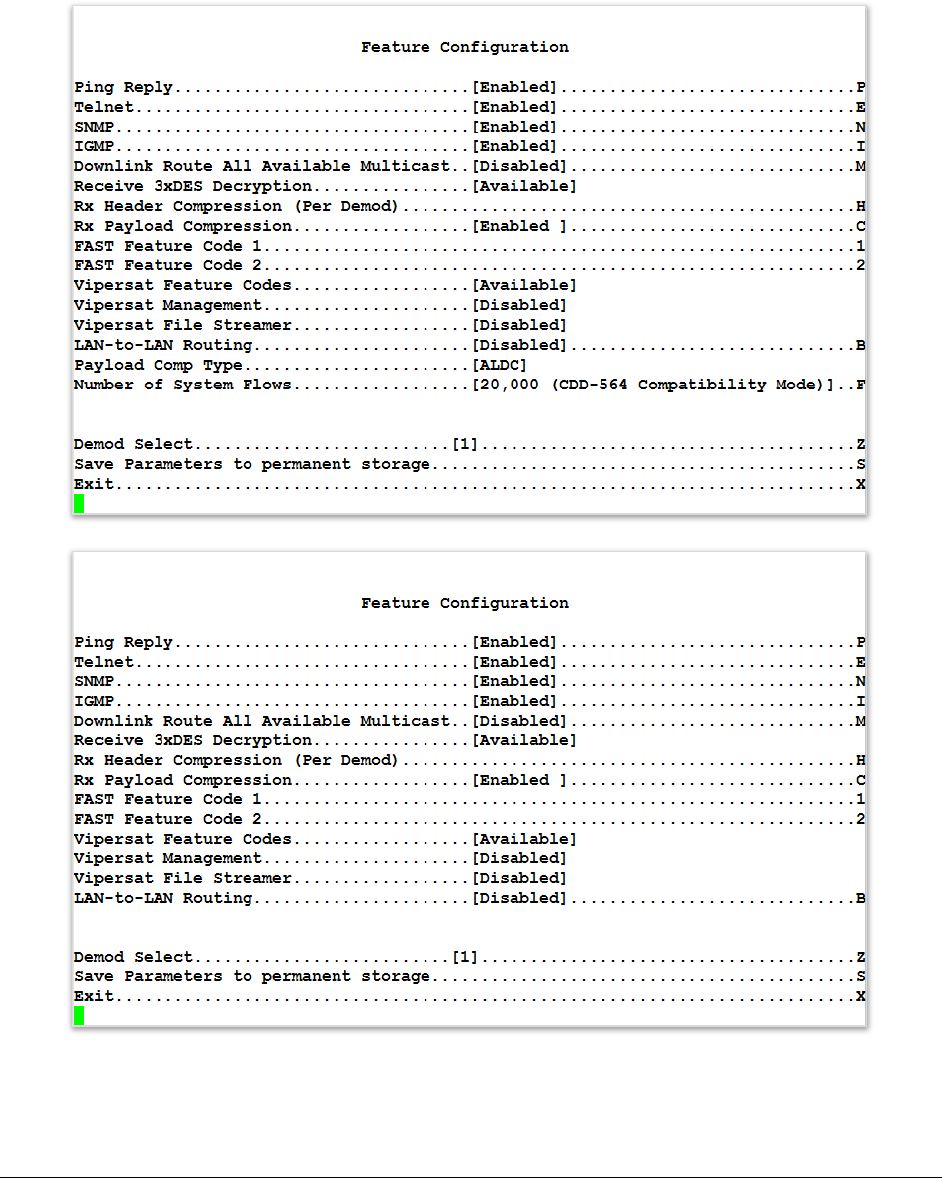

9.2.2.1.3 Feature Configuration screen
Go to the Feature Configuration from the Administration screen to display the current availability for
each feature. Any feature marked “Unavailable” is a FAST feature that must be activated with a FAST
Option Purchase Access Code.
See also: Chapter 1. Introduction, and Chapter 6. FAST Activation Procedure.
Ping Reply, keystroke: P
• Switches between [Enabled] or [Disabled]:
- CDD-562AL/564A/L 1
