CDD-562AL/564A/L Multi-Channel Demodulator Revision 0
HTTP (Web Server) Interface MN-CDD562AL564AL
10–5
10.2.1 Select a Demodulator
The CDD-562AL HTTP Web Interface pages have two demodulator channels available.
The CDD-564A/L HTTP Web Interface pages have four demodulator channels available.
Some web pages require you to select a demodulator channel number before using the functions of that
page. Any changes you make are applicable to the selected demodulator only. This demodulator selection
has no effect on system-level web pages.
10.3 Home pages
10.3.1 Home | Home
Click the Home tab from any location in the HTTP Web Interface to return to this top-level page.

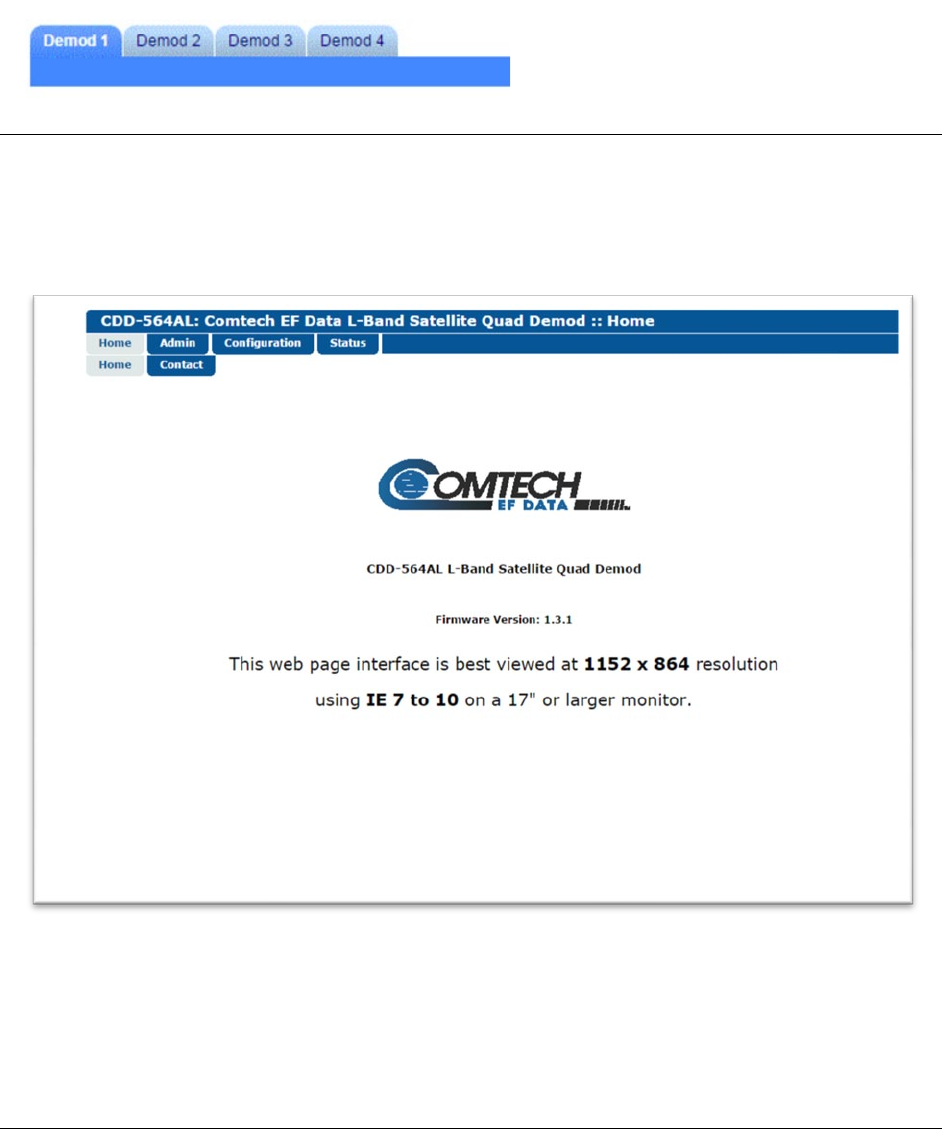

Figure 10-1. CDD-56xAL Home page example
