CDD-562AL/564A/L Multi-Channel Demodulator Revision 0
Introduction MN-CDD562AL/564AL
1–12

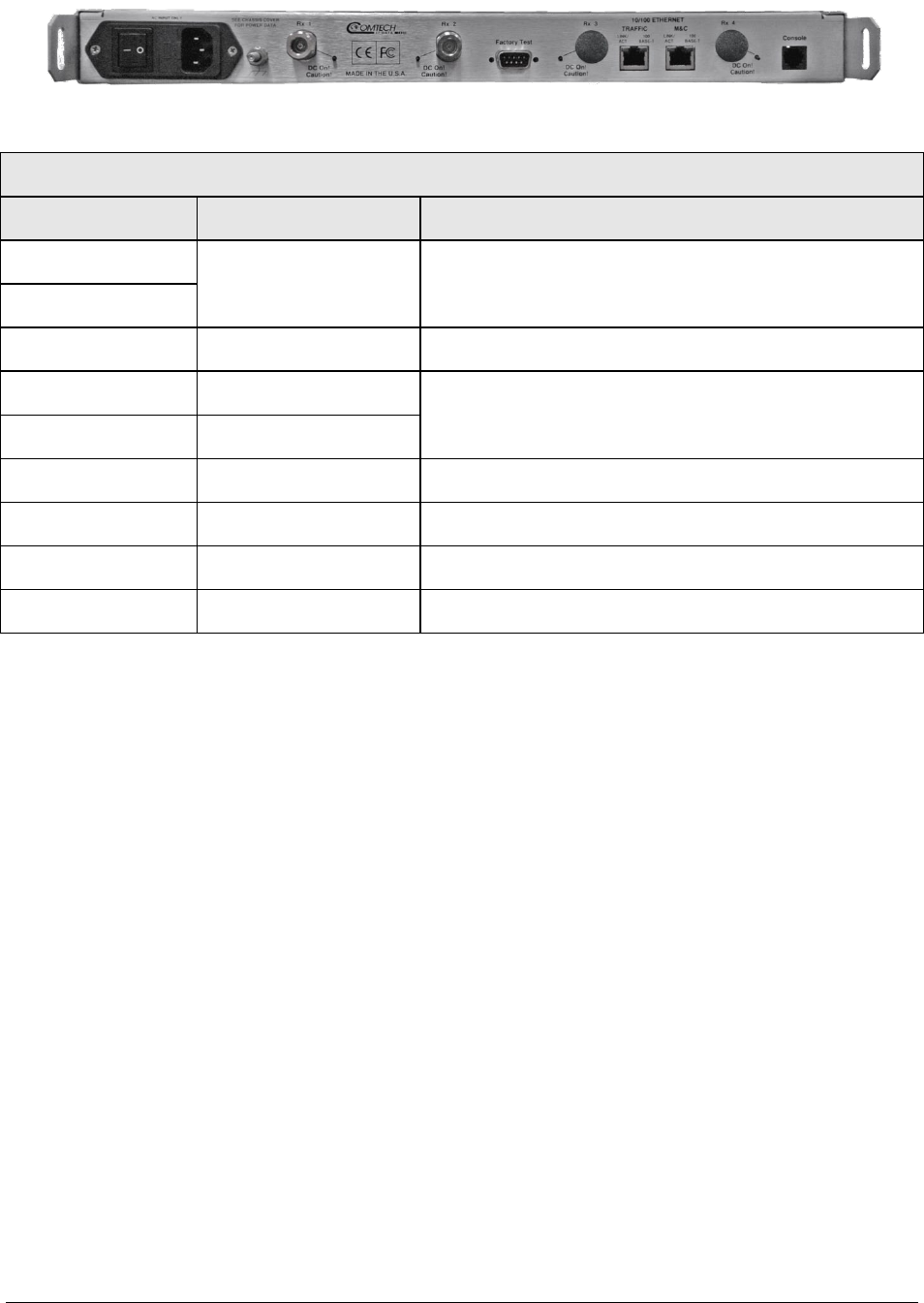

Figure 1-11. CDD-562AL Rear Panel View
CDD-562L (L-Band)
Name Type Function
AC
Chassis power
DC (Optional)
Ground #10-32 stud Common Chassis Ground
Rx 1 Type N female
L-Band Input
Rx 2 Type N female
Factory Test 9-pin Type D male Remote Interface (EIA-232) for Factory Test
10/100 Ethernet RJ-45 female Ethernet Traffic
M&C RJ-45 female M&C Port
Console RJ-11 female Async Serial Console Port
1.3.6 Data Interfaces
The demodulators include two 10/100 BaseT Ethernet ports. One port is a terrestrial data interface for IP
traffic. A separate port is for the management and control interface (the HTTP Web Server Interface).
1.3.7 Updating Demodulator Firmware
The modem uses flash memory technology internally. This simplifies firmware updating – you can
perform the update, without opening the unit, simply by connecting the modem to any 10/100 BaseT
Ethernet port on a user-supplied PC once you establish Ethernet connectivity. You can receive firmware
updates via download over the Internet (from Comtech EF Data’s website), or from Comtech EF Data
Product Support through e-mail or standard mail delivery on CD.
See Also: Chapter 5. Updating Firmware
