OM20 Universal Outdoor Modem Web Browser/Remote Protocol

MN-OM20– Revision 5 6–21

Async Inband Rate: {75, 150, 300, 600. 1200, 2400, 4800, 9600, 19200, 38400,

57600, 115200}

Allows the user to select the async inband rate.

{150 – 1024} For IBS ES to ES

{150 – 19200} For ES to ES Enhanced

{150 – 115200} For SCC Communications

Reed-Solomon Menu

These selections are active only when the Reed-Solomon Option is installed.

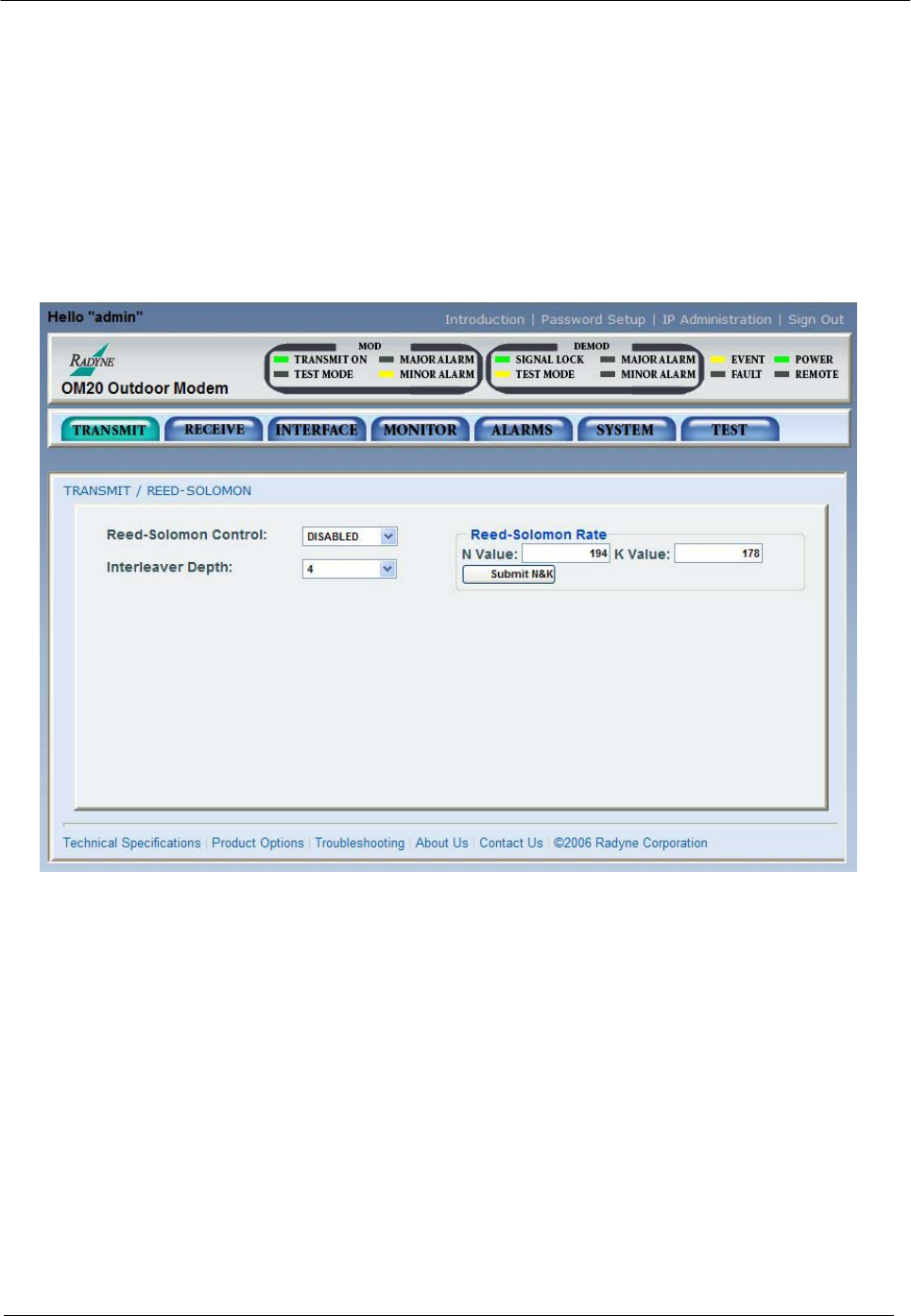

Figure 6-11. Reed-Solomon Menu

Reed-Solomon Control: {ENABLED, DISABLE}

Allows the user to Enable/Disable the Reed-Solomon Encoder.

Reed-Solomon Rate

N Value, K Value: {Refer to Table 3-1 for valid N/K values}

Displays the currently used n, k Reed-Solomon Codes. In

Closed Net Mode, the user may select custom R-S Codes.

Interleaver Depth: {4, 8, 12}

Allows the user to select the Reed-Solomon interleaver depth. In

Closed Net Mode, a depth of 4, 8 or 12 may be selected.
