OM20 Universal Outdoor Modem Web Browser/Remote Protocol
MN-OM20– Revision 5 6–2

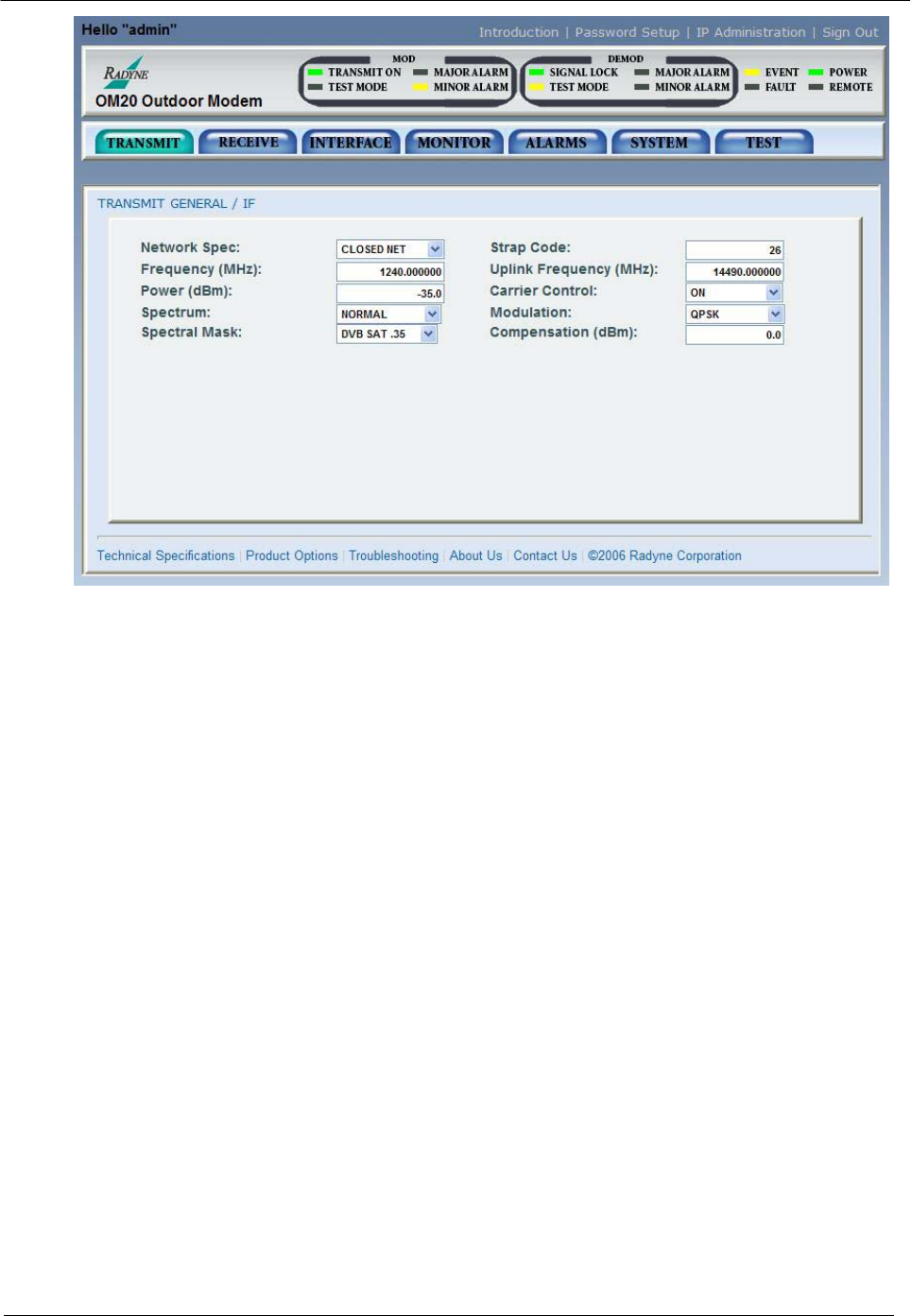

Figure 6-1. Web User Interface
6.2.1 Appearance
This site is a monitor and control of an individual complete satellite terminal. With a front panel
look and feel, and an appearance that resembles the DMD20 layout, the product features a
familiar look.
