OM20 Universal Outdoor Modem Web Browser/Remote Protocol
MN-OM20– Revision 5 6–43
General Menu

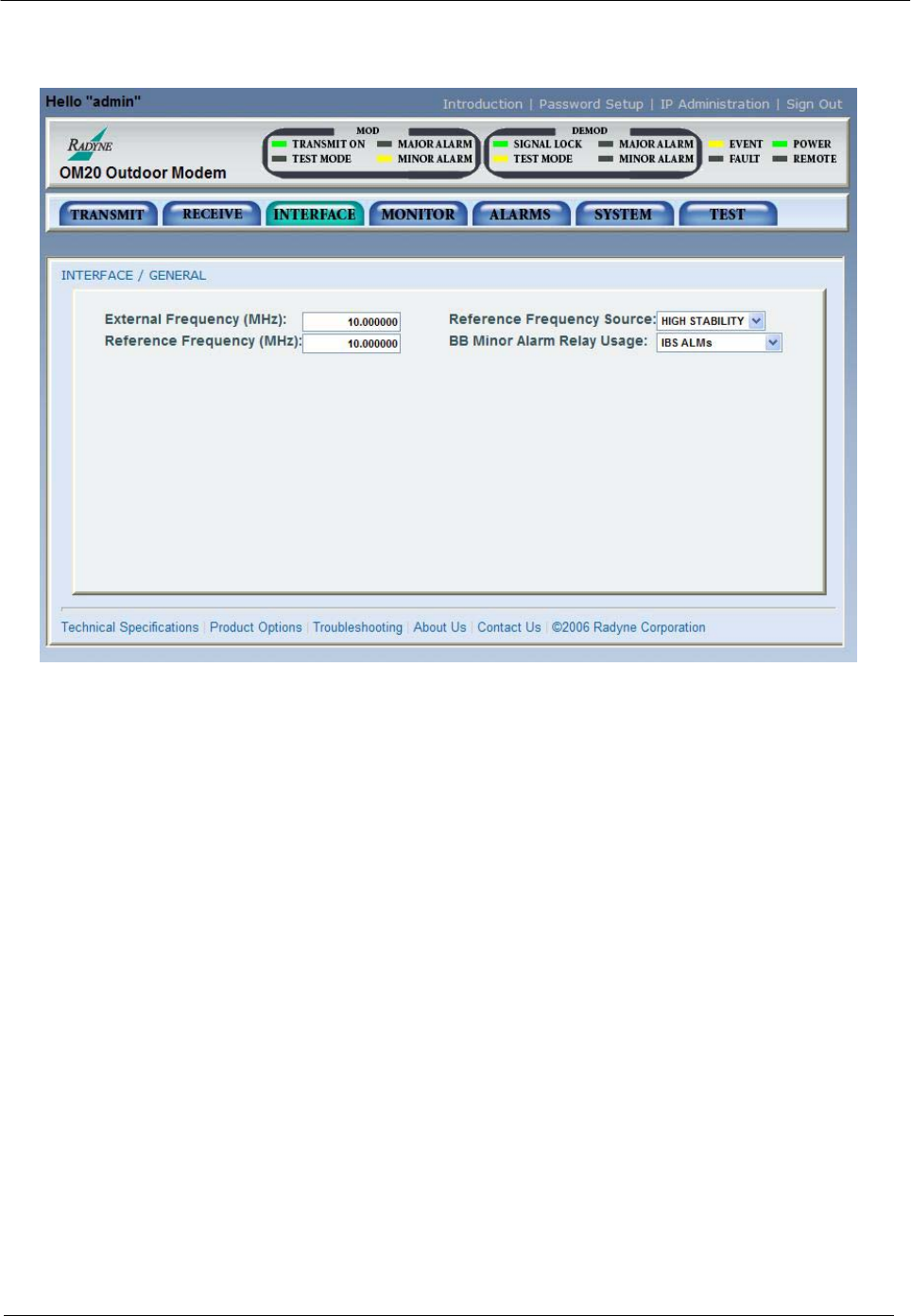

Figure 6-20. General Menu
External Frequency (MHz): {Variable Through Data Rate}
Allows the user to select the external clock frequency in MHz.
Reference Frequency
Source: {INTERNAL, EXTERNAL, HIGH-STABILITY}
Reference Frequency (MHz): {EXTERNAL, HIGH-STABILITY}
