OM20 Universal Outdoor Modem Web Browser/Remote Protocol
MN-OM20– Revision 5 6–46
Monitor Eth Link Status Menu

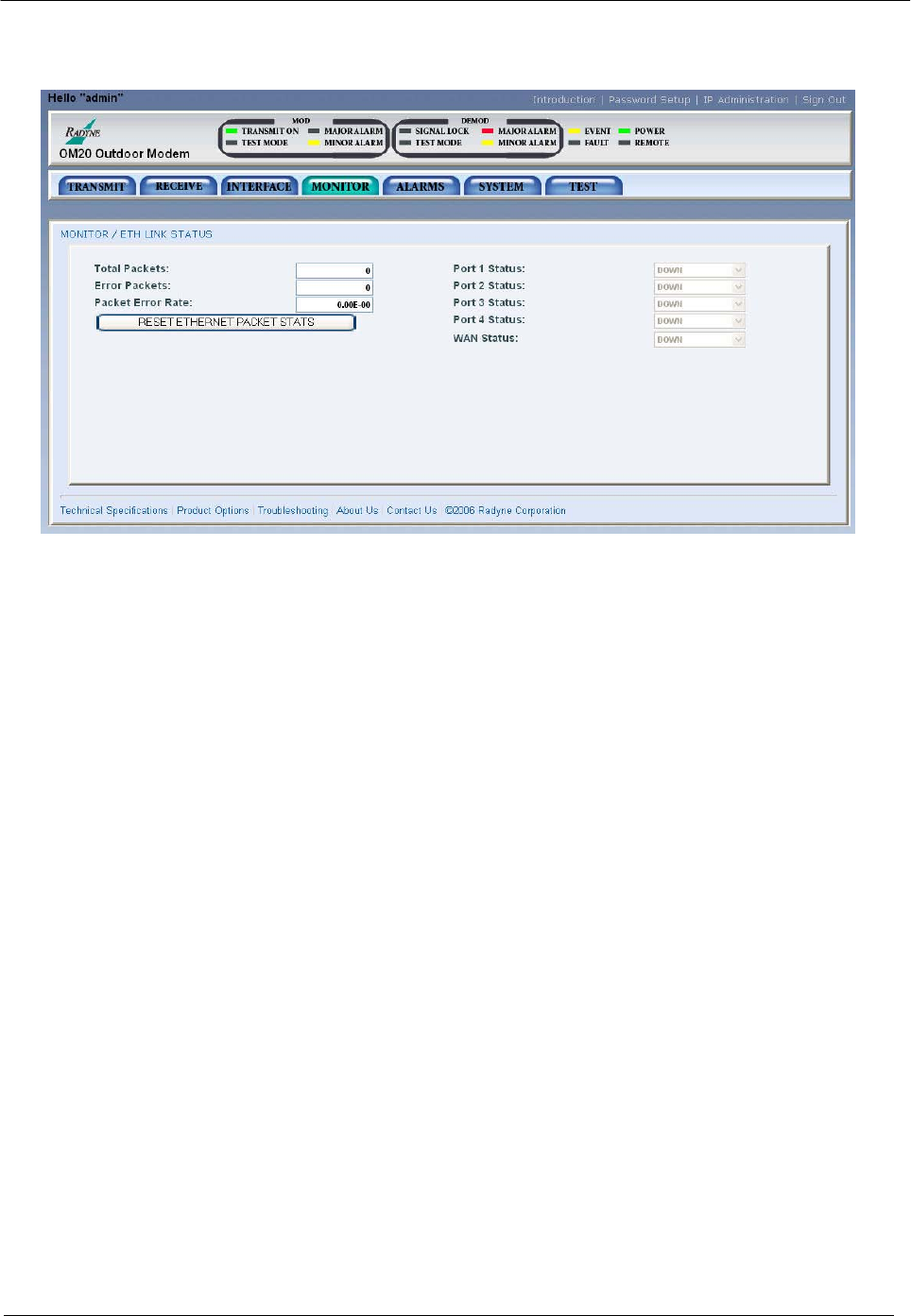

Figure 6-22. ETH Link Status Menu
Total Packets: Displays the total number of Ethernet packets received from the
satellite (Only visible when Ethernet is selected as the interface
type).
Error Packets: Displays the number of erred Ethernet packets received from the
satellite (Only visible when Ethernet is selected as the interface
type).
PKT Error Rate: Displays the satellite Packet Error Rate (Only visible when
Ethernet is selected as the interface type).
Reset Ethernet Packet Stats: Allows the user to reset the Ethernet packet statistics by pressing
this button (Only visible when Ethernet is selected as the
interface type).
