OM20 Universal Outdoor Modem Web Browser/Remote Protocol
MN-OM20– Revision 5 6–9
Preferences Menu

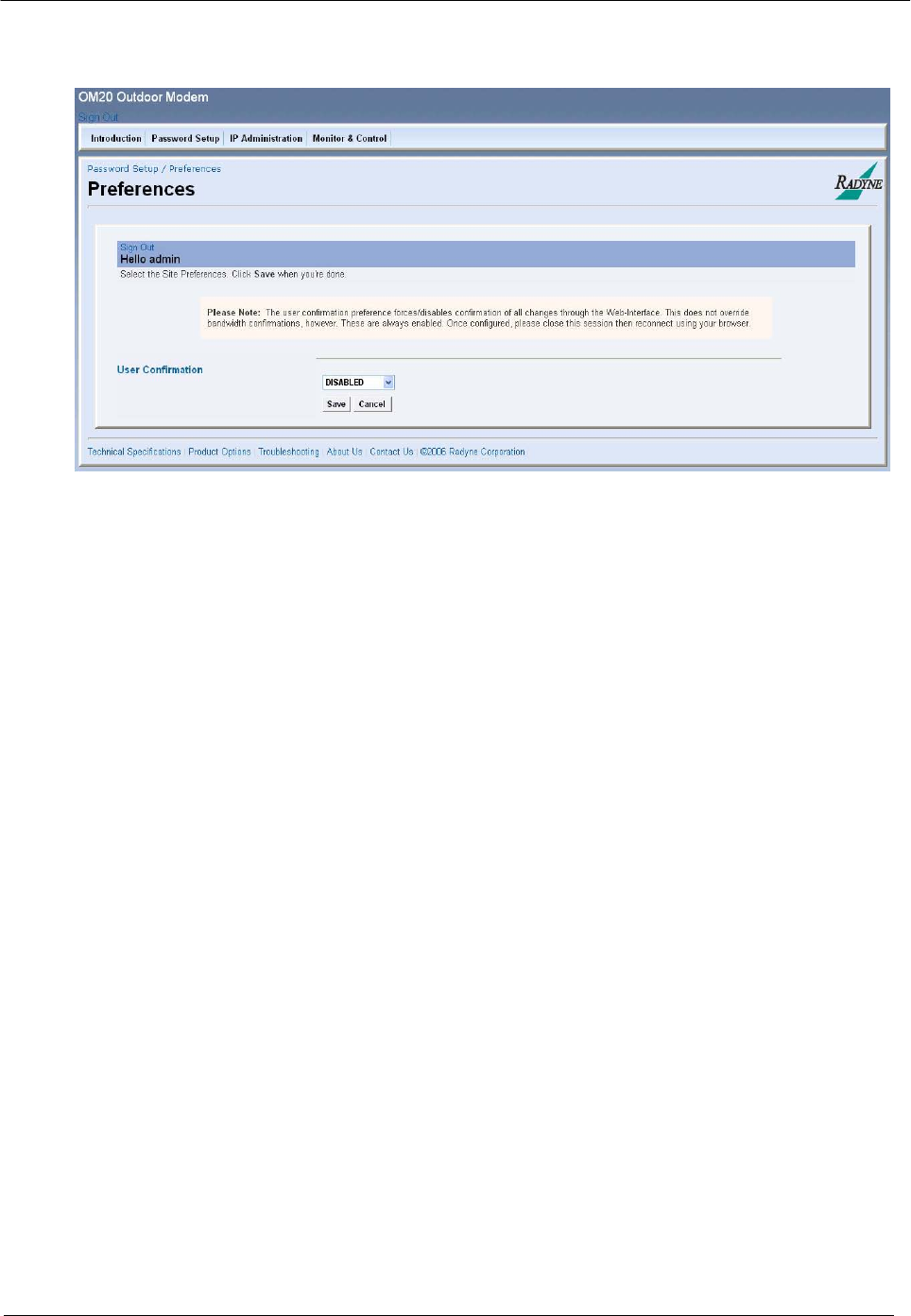

Figure 6-5. Modem Preferences menu
User Confirmation: {DISABLED, ENABLED}
The user confirmation preference allows the user to force/disable
confirmation of all changes through the web interface. This does
not override bandwidth confirmations. However, these are
always enabled.
