Chapter 4. FLASH UPGRADING
4.1 Flash Updating via Internet
The CDM-840 Remote Router uses ‘Flash memory’ technology internally. This makes software
upgrading very simple, and updates can now be sent over satellite, via the Internet (Figure 4-1), via
E-mail, or on CD.
This chapter outlines the complete upgrading process as follows:
• New firmware can be downloaded via t
he Internet to an external PC.
• The upgrade can be performed without opening the unit over satellite or by simply
connecting the unit to the Ethernet port of the external PC.
• The firmware update is transferred, via File Transfer Protocol (FTP), from the external PC to
the unit.

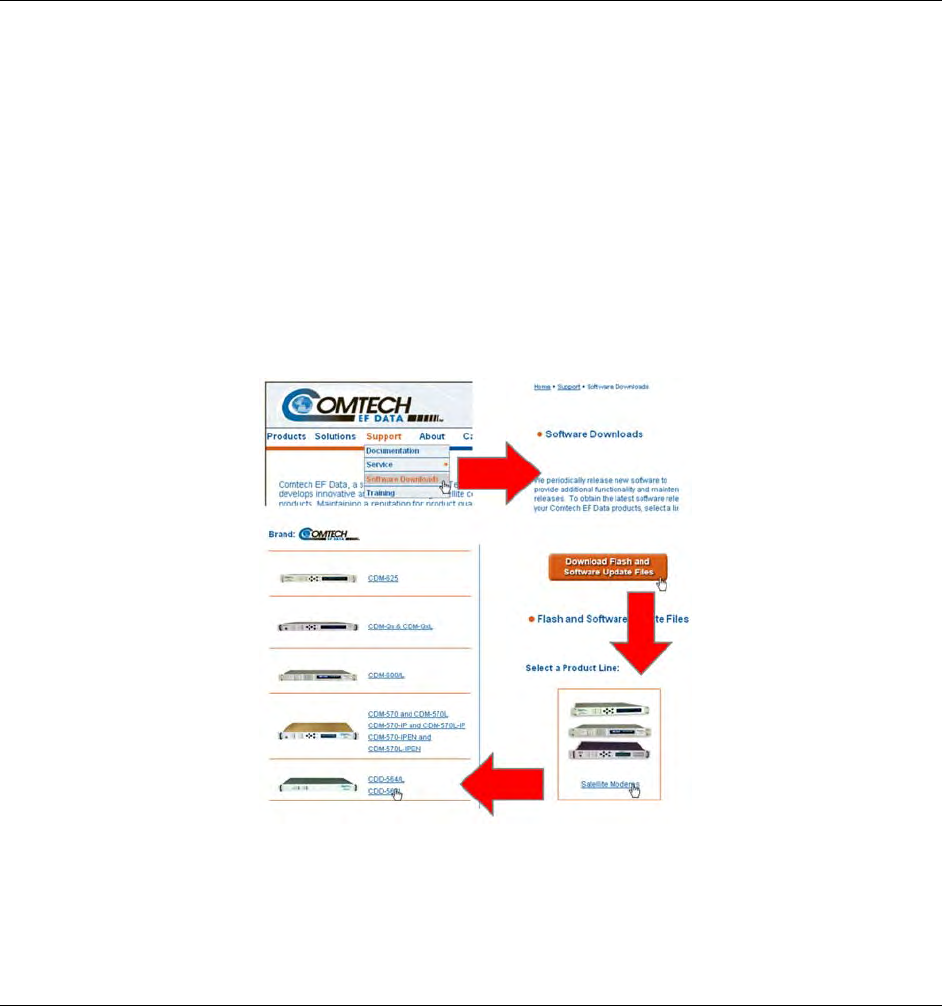

Figure 4-1. Flash Update via Internet
