CDM-840 Remote Router Revision 0

Ethernet Management MN-CDM840

5–36

5.4.4.6 Utility pages

Click the Utility or Reboot tab to continue.

5.4.4.6.1 Utility | Utility Page

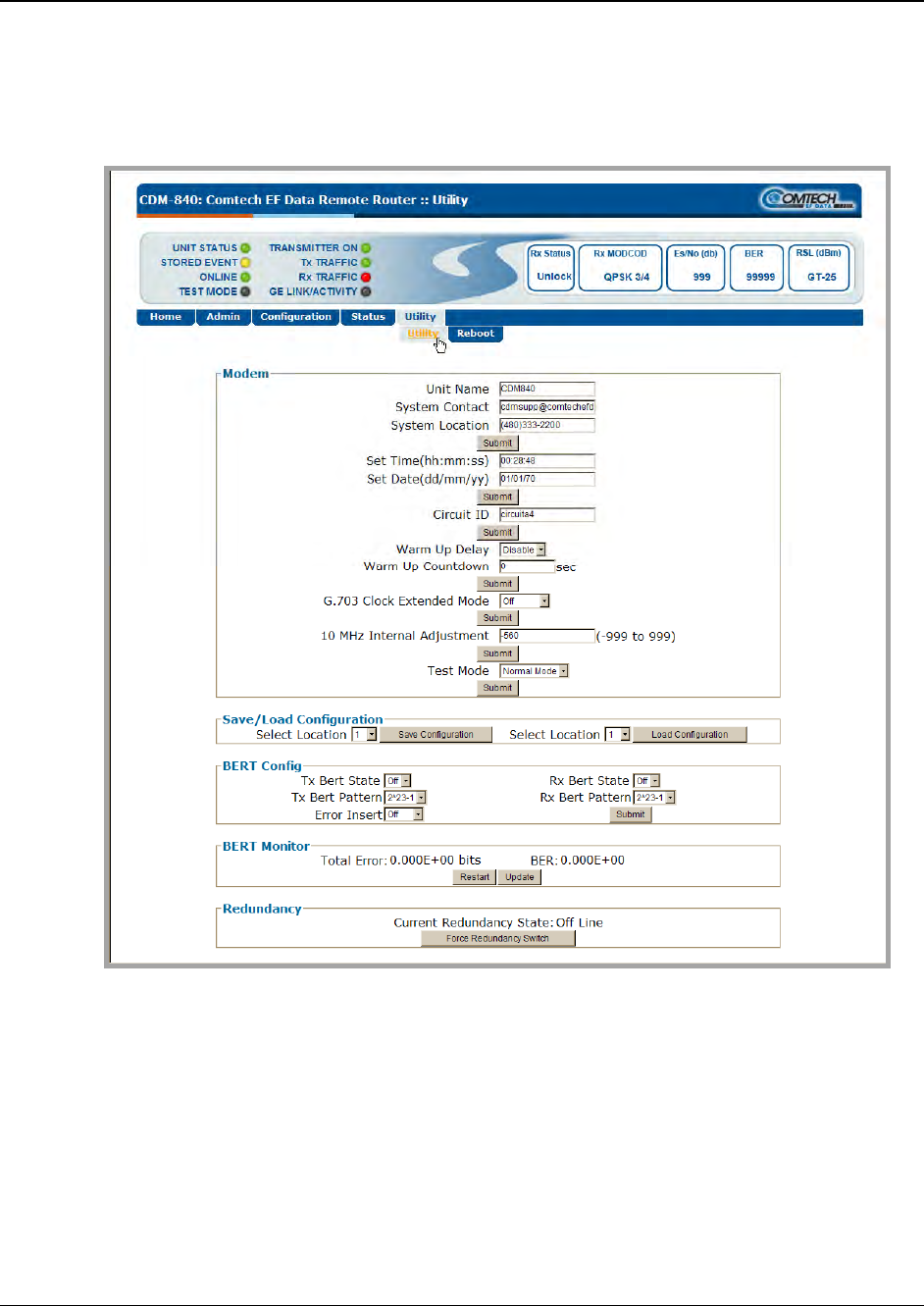

Figure 5-24. Utility | Utility page

The ‘Utility | Utility’ page (Figure 5-24)

provides an array of top-level system operation

controls, configuration storage/selection, and test utilit

ies.

Modem

Unit Name – The product (i.e., CDM840 Remote Router) is identified here.

System Contact / System Location – E-mail and telephone contact information for Comtech EF

Data Customer Support are provided here.
