MBT-4000 Multi-Band Transceiver System Revision 4

External Connectors MN/MBT4000.IOM

3–9

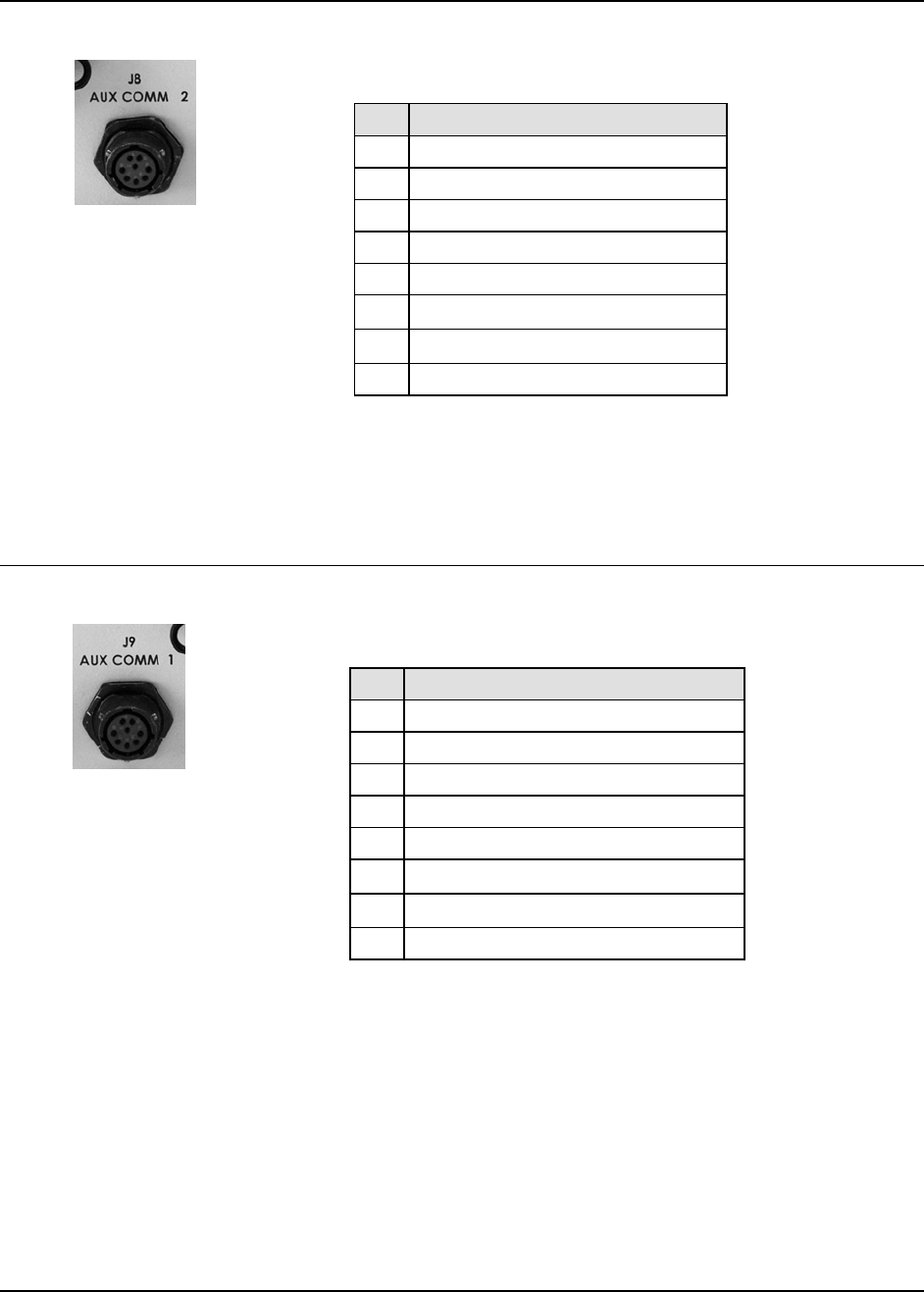

3.2.2.2 AUX COMM 2 (J8)

Table 3-9. AUX COMM 2 (J8) Connector Pinouts

Pin Signal

A AUX Rx + B

B AUX Rx – B

C AUX Tx + B

D AUX Tx – B

E +12.6V LNA B

F

I02 A/Fault

G

I02 B

H GND

NOTE - Mating Connectors:

CEFD P/N CN/MS3116J12-8P

(Cannon MS3116J12-8P)

3.2.2.3 AUX COMM 1 (J9)

Table 3-10. AUX COMM 1 (J9) Connector Pinouts

Pin Signal

A AUX Rx + A

B AUX Rx – A

C AUX Tx + A

D AUX Tx – A

E +12.6V LNA A

F

IO1 A/Fault

G

IO1 B

H GND

NOTE - Mating Connectors:

CEFD P/N CN/MS3116J12-8P

(Cannon MS3116J12-8P)
