UT-4500-A Series Upconverters Revision 0
Ethernet Management MN-UT4500A
6–5

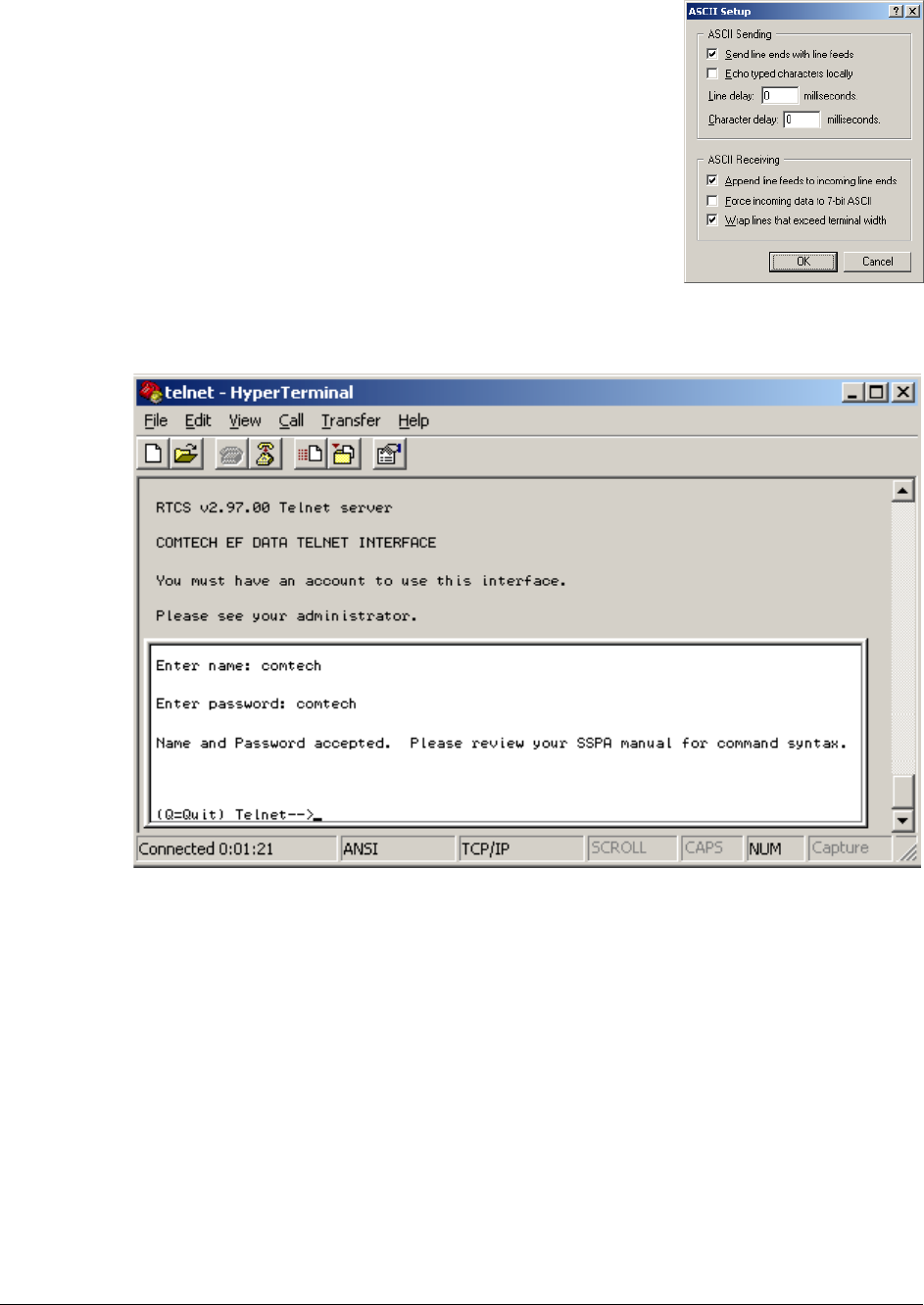

2. ASCII Setup (File! Properties !Settings!ASCII Setup):
Check the "Send line ends with line feeds" option in the
ASCII Sending section and the “Append line feeds to
incoming line ends" option in the ASCII Receiving section, as
per the example at right.
Login and remote command execution via HyperTerminal configured as Telnet Client appears as
per the following example:
