Chapter 3 - Using the Command Line Interface (CLI) 3-59
Vipersat Configuration
Receive Coding Rate
Enter P at the command prompt to use the dialog shown in Figure 3-80 to set
the Receive Coding Rate for the target CDM-570/570L’s Home State.

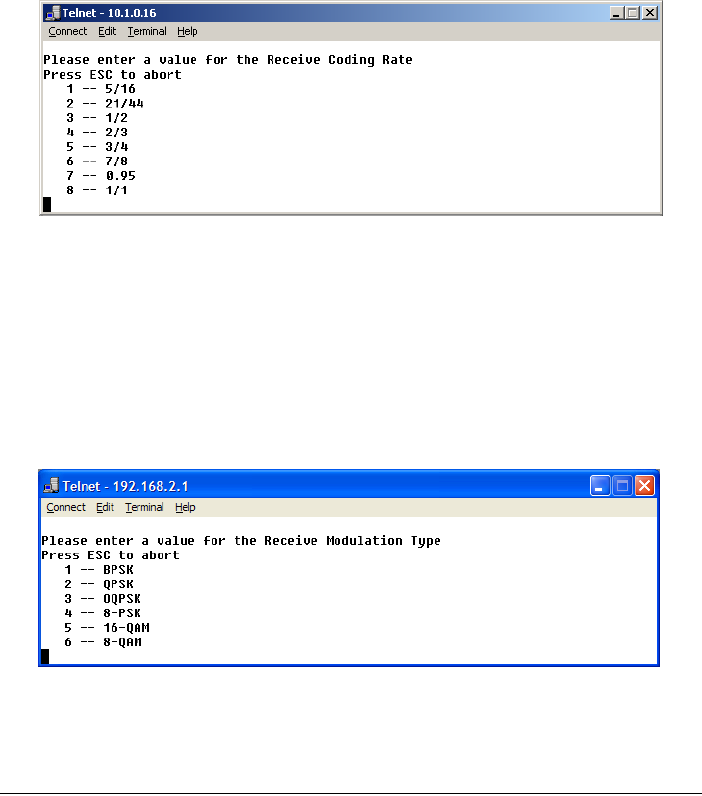

Figure 3-80
Receive Coding Rate prompt
Note that Coding Rates 3 (1/2), 4 (2/3), and 8 (1/1) are not valid selections when
operating in Vipersat mode with Turbo Product Coding.
Receive Modulation Type
Enter Q at the command prompt to use the dialog shown in Figure 3-81 to set
the Receive Modulation Type for the target CDM-570/570L’s Home State.
Figure 3-81
Receive Modulation Type prompt
Vipersat Summary
The Vipersat Summary screen can be viewed by entering D at the command
prompt in the Vipersat Configuration screen (figure 3-6).
