CDM-840 Remote Router Revision 2
Appendix D MN-CDM840
D–6
D.2.3 Viewing Header and Payload Compression S tatis tics

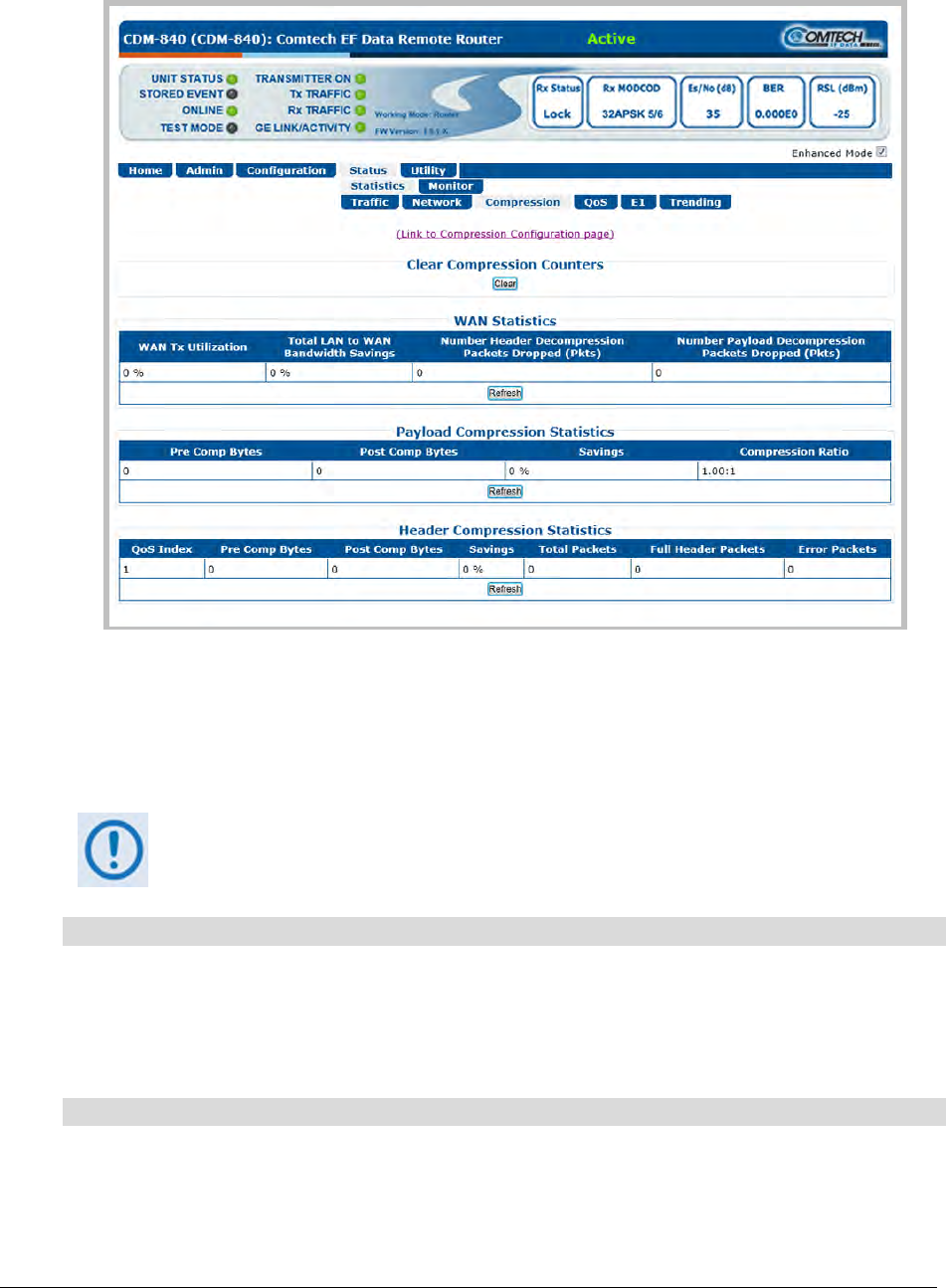

Figure D-4. Status | Statistics | Compression page
Use the Status | Statistics | Compression page (Figure D-4) to review Header and Payload
Compression statistics – the total bytes of the pre-compressed and post-compressed traffic and
effective compression ratio. The CDM-840 supports header compression for Ethernet, and Layer
3, 4, and 5 headers.
The CDM-840 currently supports Routing Mode operation only, so Layer 2 headers
are not transmitted over the satellite link. Therefore, there is no need for Layer 2
header compression.
Supported Ethernet Headers
• Ethernet 2.0 • 803.3+802.2 + SNAP + VLAN tag • 803.3+802.2 + SNAP
• Ethernet 2.0 + MPLS • Ethernet 2.0 + VLAN tag • 803.3+ SNAP + MPLS
• 802.3-raw _ VLAN tag • 802.3-raw
• 803.3+802.2 + VLAN tag • 803.3+802.2
Supported Layer 3 and Layer 4 Headers
• IP • TCP
• RTP (Codec Independent) • UDP
